Lintkonveier GUF-P 2000 võimsusega 250 W keskmise raskusega detailide jaoks, valikuliselt juhtimisega

• Widths: 200 / 300 / 400

• Lengths: 1000 / 1500 / 2000

• Conveyor belt: PU, white FDA, allows for restricted accumulated operation

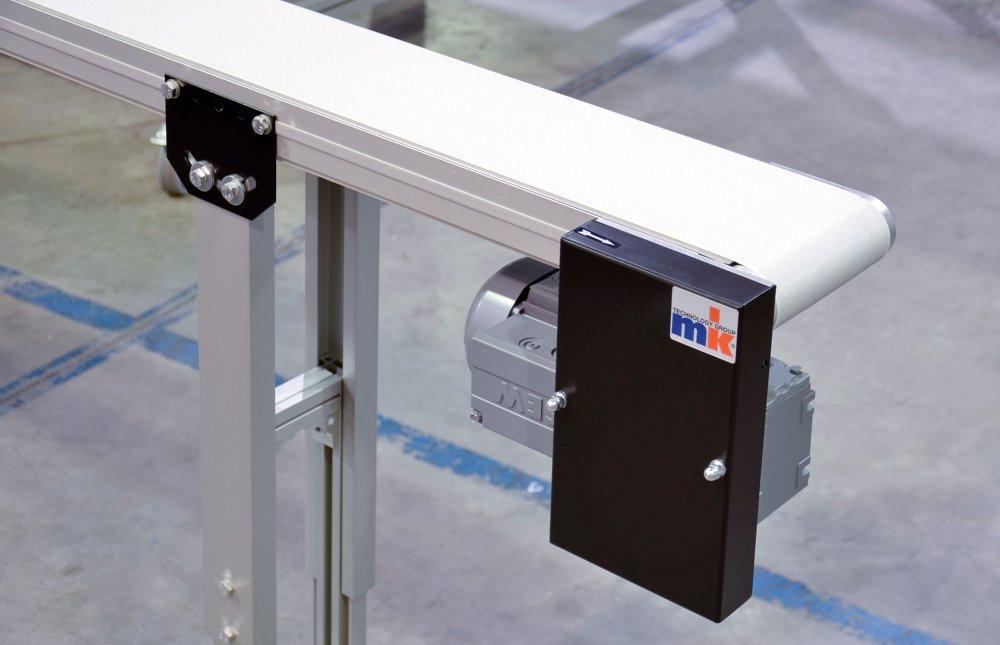

• Drive: AC head drive, 250 W / SEW / AC 230 V / 50 Hz / IP 54

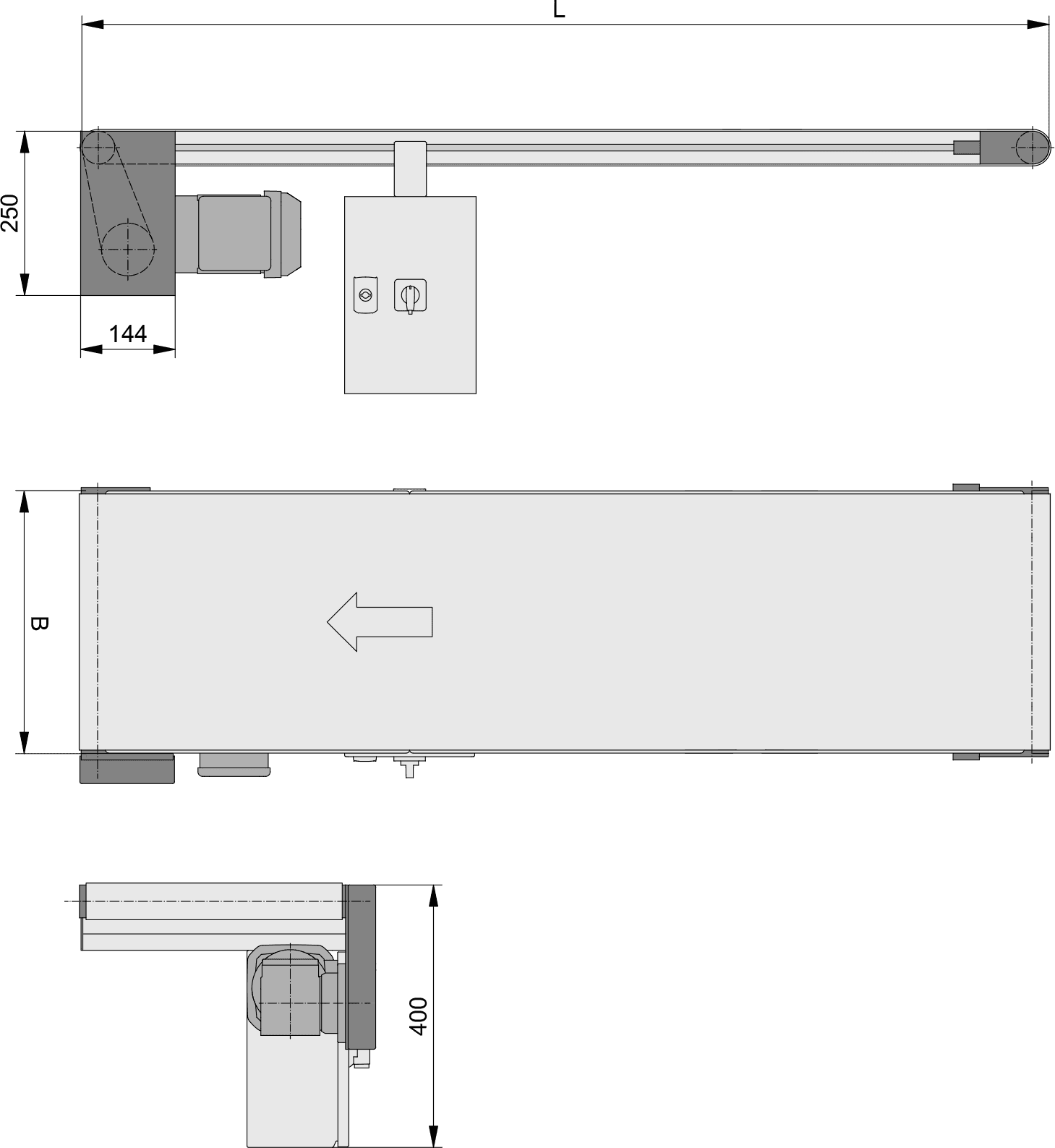

• Motor installation position: 0° horizontally under the belt, either on the left or right (default: left)

• Speed: adjustable with 6, 18, 30 or 42 m/min.

• Total load: < 30 kg

• Type of transport: forwards and reversing with start ramp

• Power supply: optional frequency inverter, with external DC 24 V interface for starting/stopping, 4 fixed speed levels and selectable direction

• Driving roll: Ø 53 mm, w/o rubber coating

• Tail: Ø 53 mm

• Power transmission: chain drive

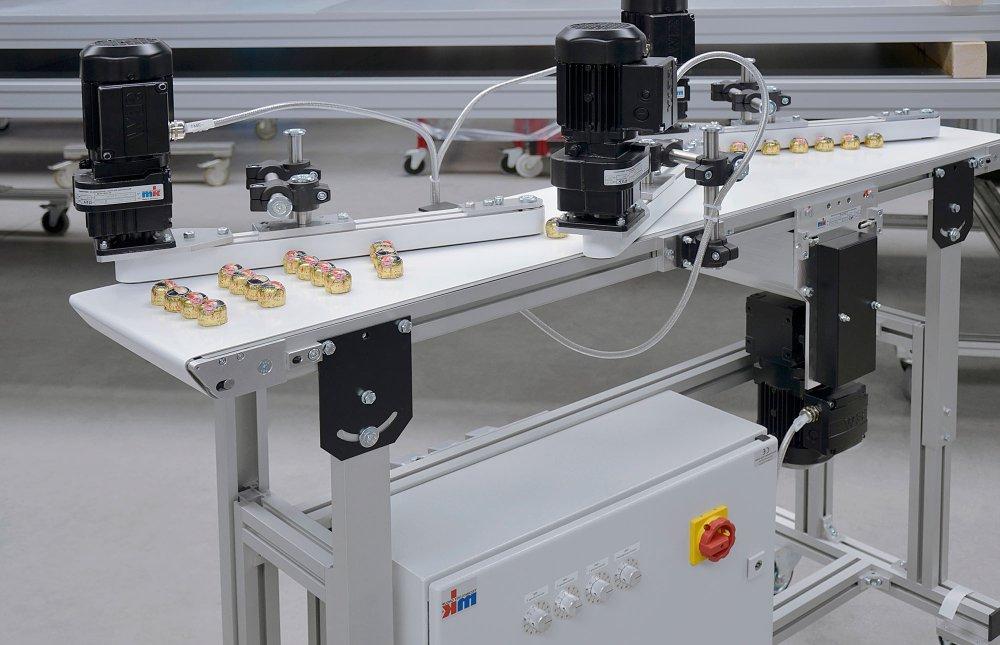

The frequency inverter is used for the power supply and control of the motor and meets, with motor protection and a main switch, the requirements of the EC Machinery Directive (MRL) for a complete machine. The regulation for 4 fixed speed levels, including soft start and reversing operation, as well as start/stop control is carried out via a 24 V DC interface. It is completely installed in a separate IP54 control cabinet and is wired ready for connection. The supply voltage (230V AC / 50 Hz / 16A) and signals are provided with plug connections for direct connection to the main cabinet.

• Lengths: 500 to 10000 mm

• Widths: 50 to 800 mm

• Total load: up to 75 kg (from W=400 mm, max. 25 kg/m)

• Speed: up to 80 m/min

• Motor installation position: pointing downwards 90°

• Belt types: from suitable to unsuitable for accumulated operation

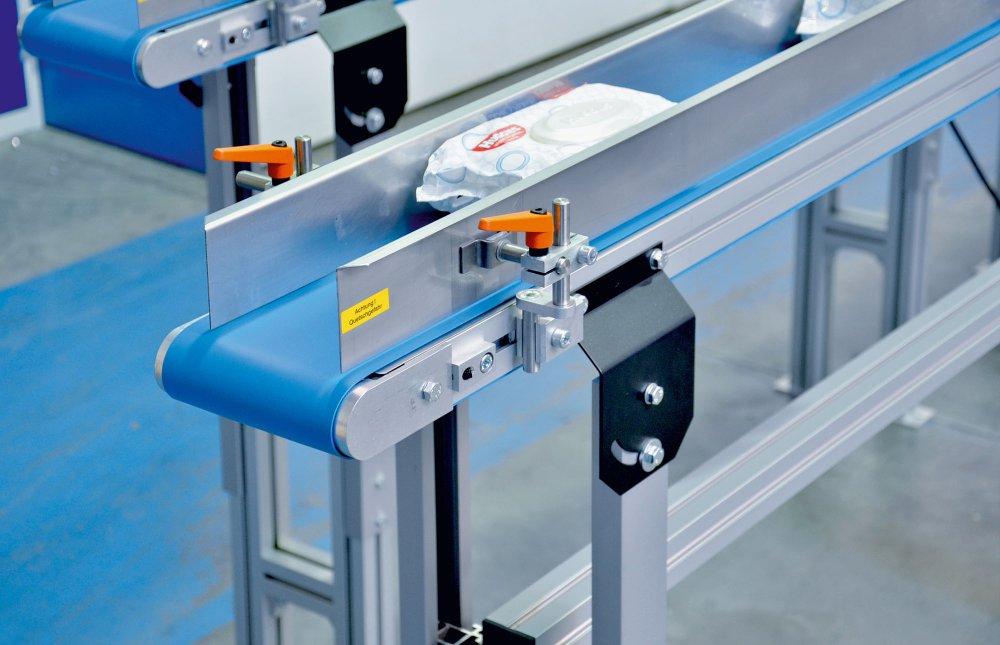

• Side rails

• Stand systems

• Angle fastening for table-top assembly or connection to machine frames
